产品介绍

产品名称:便携式氢气检测仪/手持式氢气泄露探测器

生产厂商:美国H2SCAN

型号:HY-ALERTA 500

产地:美国

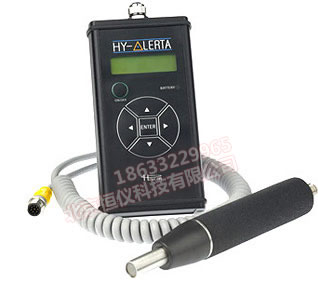

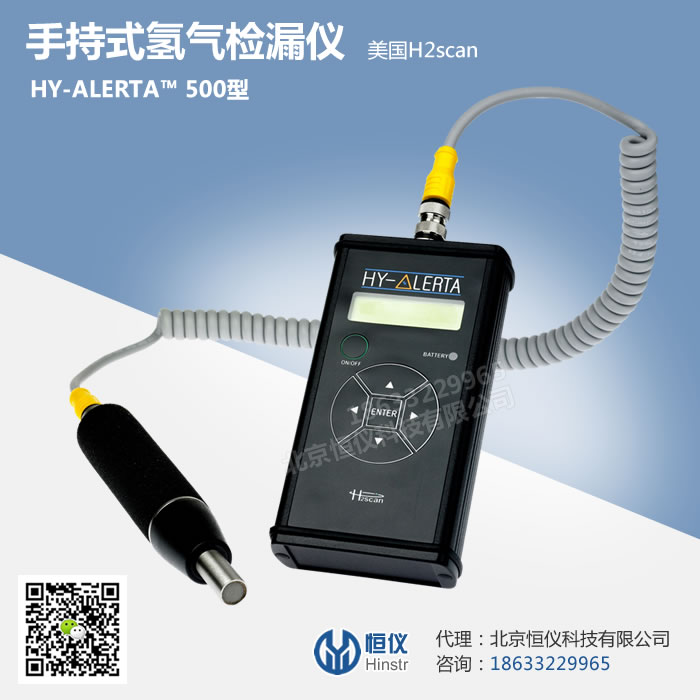

HY-ALERTA 500型手持式氢气泄露探测器(美国h2scan)

美国行业知名厂商 | 便携式氢气检测仪 | 功能丰富,响应快速 | 检测范围:15ppm至100%



HY-ALERTA500型手持式氢气泄露探测器介绍:

我们都知道在工业中尽快发现和定位氢泄漏的非常重要。

H2scan生产的HY-ALERTA 500型手持氢气泄露检测仪是业界功能非常多的便携式氢气泄漏检测仪,能够响应最广泛的氢气浓度,而不需要任何外围设备。可有效帮助导航氢气泄漏源,氢气的产生,使用,运输或储存。

HY-ALERTA 500型手持氢气泄露检测仪在同一个半导体管芯上具有两个传感元件,能够检测到低至15ppm的氢泄漏,并且在检测到高达100%的高浓度氢时不会饱和或被破坏。柔性电缆允许传感器探头访问几乎所有潜在的泄漏源。已经证明该产品及其益处的一些应用是在核设施中的干燥桶焊接和在氢气冷却的发电机中测量氢气。



HY-ALERTA500型手持式氢气泄露探测器规格参数:

  氢敏感范围:15ppm至100%氢,无需外围设备。几秒钟内可显示结果

  防护:IP64

  现场验证/校准周期:1年

  预期寿命:10年

运行条件

    工作温度范围:0ºC至45ºC

    储存温度范围:-20ºC至45ºC

    校准背景气体:空气

外形尺寸

    单重:2.15磅,975克

    总长度:6.8英寸

    总宽度:3.4英寸

    深度:1.4英寸

    探头长度:7.8英寸

    探头尖端直径:0.5英寸。

    探针手柄直径:1.2英寸

    卷线长度缩回:26英寸。

    卷线长度延长:72英寸。

    卷线直径:0.7英寸。

锂离子电池性能

    工作时间:10小时

    充电时间:最多4小时,附带充电器

认证:

    UL Listed, CE

配件:

    工具箱便携包

    充电器

    电源适配器

    控制箱

    盘绕电缆

    传感器探头组件

    验证杯组装

    便携式肩带背带便携包

    可再充电的内置锂离子电池

HY-ALERTA500型手持式氢气泄露探测器(美国h2scan)

英文介绍

HY-ALERTA™ 500 Handheld Hydrogen Leak Detector

H2scan recognizes the importance of detecting and locating hydrogen leaks as quickly as possible.  H2scan’s HY-ALERTA™ 500 Handheld Hydrogen Leak Detector is the industry’s most versatile, portable hydrogen leak detector able to respond to the widest range of hydrogen gas concentrations without the need of any peripheral equipment.  The hydrogen sensor probe has a unique visual LED array that will effectively help navigate to the source of a hydrogen leak where hydrogen gas is produced, used, transported, or stored.

With two sensing elements on the same semiconductor die, the HY-ALERTA™ 500 can detect hydrogen leaks as low as 15 ppm and will not saturate or be destroyed when detecting high concentrations of hydrogen up to 100%.  The flexible cable allows the sensor probe access to virtually all potential leak sources. Some applications where this product and its benefits have been demonstrated are in Dry Cask Welding in Nuclear Facilities and in the measurement of hydrogen in a Hydrogen-cooled generator.

Performance

Hydrogen Sensitivity Range:

15 ppm to 100% hydrogen by volume,

No peripheral equipment needed

Initial Response Time in seconds

Ingress Protection: IP64 capable

Field Verification/Calibration Period: 1 year

Product Life Expectancy: 10 years

Lithium Ion Battery Performance

Operating Time:  10 hours

Charge Time:  4 hours maximum with included charger

Certifications

UL Listed, CE

Operating Conditions

Operating Temperature Range:  0ºC to 45ºC

Storage Temperature Range:  -20ºC to 45ºC

Calibration Background Gas:  Air

Dimensions

Unit Weight:  2.15 lbs, 975 g

Total Length: 6.8 in.

Total Width:  3.4 in.

Depth:  1.4 in.

Probe Length:  7.8 in.

Probe Tip Diameter:  0.5 in.

Probe Handle Diameter:  1.2 in.

Coiled Cord Length Retracted:  26 in.

Coiled Cord Length Extended:  72 in.

Coiled Cord Diameter:  0.7 in.

Accessories

Plastic Briefcase style kit carrying case

Battery charger

Power Adapter

Control Box

Coiled Cable

Sensor Probe Assembly

Verification Cup Assembly

Portable shoulder strap harness carrying case

Re-chargeable Built-in Lithium Ion Battery
