当前位置:首页 > 环境检测设备 > 气体检测 > 德国COMPUR Statox 501 Infratox红外传感器固定式可燃气体检测仪
产品介绍

产品名称:可燃气体检测仪\固定式可燃气体检测器\红外传感器可燃器检测仪

英文名称:Combustible Gas Detector: Statox 501 Infratox
品牌:德国COMPUR
型号:Statox 501 Infratox

Statox 501 Infratox固定式可燃气体检测仪采用红外线传感器的可燃气体检测仪,准确度高,成本更低,德国品质,更放心!

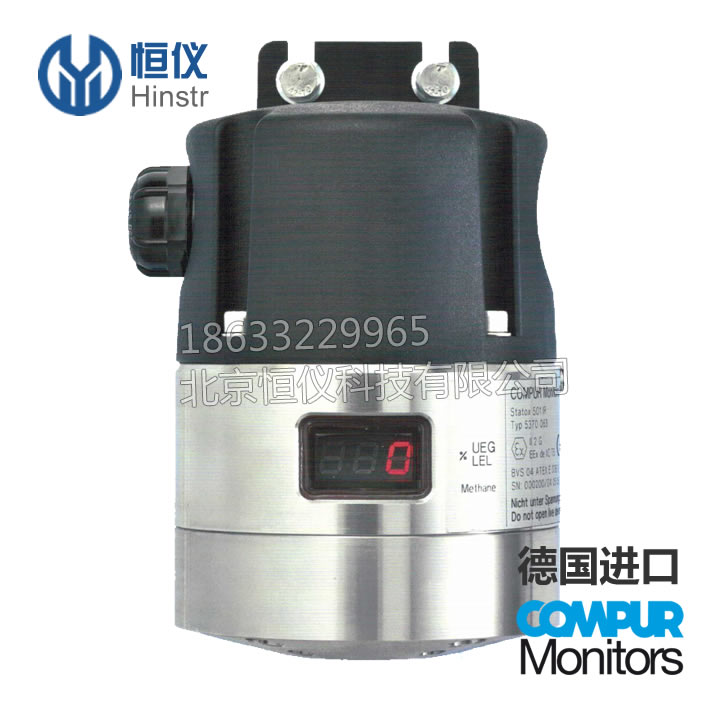

德国COMPUR Statox 501 Infratox可燃气体检测仪(红外传感器)
德国Compur为国际知名气体分析检测产品厂家,在国际及中国拥有大量的用户,产品充分体现德国品质,拥有较好的质量,广受用户好评。

恒仪公司是德国Compur在中国重要的合作经销商,恒仪与Compur合作多年,为中国大量用户提供产品服务,如需订购COMPUR品牌产品,可以随时联系我们:


德国COMPUR Statox 501 Infratox固定式可燃气体检测仪产品参数:

 Detectable gases:combustible gases and vapors

 Measuring range: 0 – 100 % L.E.L. 0 - 5% or 0 - 2% CO2

 Measuring principle: Infrared absoption, NDIR 2-channel

 Detection limit:3 % L.E.L. Methane 200 ppm CO2

 Response time:t50 < 10 s, t90 < 25 s

 Accuracy (Full Scale): ± 2% L.E.L. at room temperature

 Warm up time:20 s, full specifications after 30 min

 Operating temperature: -20 °C to + 60°C (- 4°F to + 112°F)

 Storage temperature:-20 °C to + 60°C ( - 4°F to + 140°F)

 Humidity:0 – 99 % r. H.

 Pressure:800 – 1100 hPa, < ± 0,1 %L.E.L. / hPa

 Power supply:24 V DC (18 – 29 V DC) / 1 W

 Current:24 V DC (18 – 29 V DC) / 1 W

 Connection:4 Wire

 Output:4 – 20 mA, electrically isolated, max. load 220 O

 in the service mode 2 or 4 mA programmable,

 system fail 0 mA

 Display:LED three digits

 Dimensions:Height: 150 mm Width: 120 mm Depth: 120 mm

 Weight:app. 3,1 kg 6,8 pounds

 Material: stainless steel, fiber reinforced polyamide

 Protection class:IP 67 (NEMA 4 and 6)

 Ex-Approval ATEX Standard:II 2 G EEx de IIC T5

 Approval #:BVS 04 ATEX E 006 X



COMPUR Statox 501 Infratox相关配件及产品



STATOX 501 气体传感器

536100 STATOX 501 Sensor AsH3     0,5 ppm

538718 STATOX 501 Sensor Cl2         3/5 ppm

558278 STATOX 501 Sensor ClO2       1 ppm

558286 STATOX 501 Sensor ClO2       5 ppm

571151 STATOX 501 Sensor CO     100/300 ppm

550697 STATOX 501 Sensor COCl2    0,3 ppm

550630 STATOX 501 Sensor COCl2    1,0 ppm

550501 STATOX 501 Sensor COCl2  1,0 ppm QE-Filter H2S

550606 STATOX 501 Sensor COCl2    100 ppm

550614 STATOX 501 Sensor COCl2     15 ppm

531250 STATOX 501 Sensor CO2  0-100% LCIR

531500 STATOX 501 Sensor CO2  0-10% LCIR

561956 STATOX 501 Sensor Combustible ARE

556280 STATOX 501 Sensor Combustible HRC

557110 STATOX 501 Sensor Combustible LCIR CH4

557308 STATOX 501 Sensor Combustible MCIR

556876 STATOX 501 Sensor Combustible LRC

511214 STATOX 501 Sensor Combustible PID ppm

511215 STATOX 501 Sensor Combustible PID ppb

544971 STATOX 501 Sensor H2   150/300/1000 ppm

531002 STATOX 501 Sensor H2S      100 ppm

516188 STATOX 501 Sensor H2S 100 ppm Gel

516190 STATOX 501 Sensor H2S  0,3 ppm

536118 STATOX 501 Sensor HCl       50 ppm

538360 STATOX 501 Sensor HCN       20 ppm

538908 STATOX 501 Sensor HCN   30/100 ppm

572135 STATOX 501 Sensor HF        10 ppm

561518 STATOX 501 Sensor Infratox  0-100 % LEL Ethylen

561053 STATOX 501 Sensor Infratox  0-100 % LEL Methane

561006 STATOX 501 Sensor Infratox 0-2/5 % CO2

501062 STATOX 501 Sensor N2H4       1 ppm

544872 STATOX 501 Sensor NH3      150 ppm

570050 STATOX 501 Sensor NH3 TT   150 ppm

569143 STATOX 501 Sensor NO2       10 ppm

534485 STATOX 501 Sensor NO2       50 ppm

530814 STATOX 501 Sensor O2          2-35 %

571103 STATOX 501 Sensor O3       0-1 ppm

536095 STATOX 501 Sensor PH3        1 ppm

538429 STATOX 501 Sensor SO2     5/20 ppm

558952 STATOX 501 Sensor THT     50mg/cbm



561030 STATOX 501 Sensor Infratox cal Butane

561026 STATOX 501 Sensor Infratox cal c-Pentane

561032 STATOX 501 Sensor Infratox cal Hexane

561067 STATOX 501 Sensor Infratox cal i-Butene

561038 STATOX 501 Sensor Infratox cal i-Propanol

561040 STATOX 501 Sensor Infratox cal Chlorbenzol

561037 STATOX 501 Sensor Infratox cal Methanol

561031 STATOX 501 Sensor Infratox cal n-Pentane

561029 STATOX 501 Sensor Infratox cal Propane

561034 STATOX 501 Sensor Infratox cal Propene

561695 STATOX 501 Sensor Infratox cal Nonane

561696 STATOX 501 Sensor Infratox cal Acetone

561697 STATOX 501 Sensor Infratox cal Butylacetate

561698 STATOX 501 Sensor Infratox cal MM

561699 STATOX 501 Sensor Infratox cal MDM

561700 STATOX 501 Sensor Infratox cal Hexane 1000 ppm

559584 STATOX 501 Sensor ARE ref n-Butane/Methanol

559588 STATOX 501 Sensor ARE ref n-Butan/Dimethylether

559595 STATOX 501 Sensor ARE ref n-Butane/Xylene

559596 STATOX 501 Sensor ARE ref n-Butan/Ethanol

559300 STATOX 501 Sensor ARE ref n-Butane/Nonane

559301 STATOX 501 Sensor ARE ref n-Butane/Propene

559302 STATOX 501 Sensor ARE ref n-Butane/Acetone

559303 STATOX 501 Sensor ARE ref n-Butan /Hexane

559304 STATOX 501 Sensor ARE ref n-Butane/Acetylene

559305 STATOX 501 Sensor ARE ref Propane/Benzene

559306 STATOX 501 Sensor ARE ref n-Butane/NH3

559307 STATOX 501 Sensor ARE ref Propane/NH3

559308 STATOX 501 Sensor ARE ref n-Butane/H2

559309 STATOX 501 Sensor ARE ref n-Butane/Propane

559310 STATOX 501 Sensor ARE ref n-Butane/c-Pentane

560175 STATOX 501 Sensor ARE ref n-Butane/Toluene

STATOX 501 Accessories & Parts

804385 STATOX 501 Flow Applications filter 5 Mikron

559607 STATOX 501 Dust/Aerosol filt. HRC/CO/H2

559599 STATOX 501 H2/CO/ClO2/COCl2 CS-Filter H2S

559600 STATOX 501 HCN/COCl2   QS-Filter HCl, Cl2

500791 STATOX 501 Charcoalfilter 20  ea

557835 STATOX 501 CO QS-Filter HC

534620 STATOX 501 Head Adapter Gasgenerator

501047 STATOX 501 Head HRC Cal/Diff.adapter

562135 STATOX 501 Head HRC Pipe adapter

551061 STATOX 501 Head HRC Cal/Diff.adapter windshielded

569804 STATOX 501 Head HRC Cal/Flow adapter

561051 STATOX 501 Head Infratox Cable glands

562031 STATOX 501 Head Infratox Calibration adapter

561059 STATOX 501 Head Infratox Calibration adapter hose connector

511101 STATOX 501 Head PID Calibration adapter

511201 STATOX 501 Head PID Interface Atex

511205 STATOX 501 Head PID Sensor blind plug

511206 STATOX 501 Head PID Filterset  (10 ea)

561055 STATOX 501 Sensor Head Infratox Sensor Splashguard

561048 STATOX 501 Sensor Head Heat Shield

561046 STATOX 501 Sensor Head Heat Shield Pipe kit

561047 STATOX 501 Sensor Head Infratox Heat Shield

561049 STATOX 501 Sensor Head Infratox Heat Shield Conduit

557833 STATOX 501 Sensor Splashguard

511218 STATOX 501 Sensor PID replacement lamp

511223 STATOX 501 Sensor PID replacement electrodes ppm

511224 STATOX 501 Sensor PID replacement electrodes ppb

511207 STATOX 501 Sensor PID Polishing set

560670 STATOX 501 Controller PCB Connector

560654 STATOX 501 Controller PCB Display

560662 STATOX 501 Controller PCB Processor

560688 STATOX 501 Controller PCB Supply

543171 STATOX 501 Head Tox Housing

557175 STATOX 501 Head ARE,HRC,LCIR Housing saltwater resistent

557141 STATOX 501 Head ARE,HRC,LCIR Housing u

557145 STATOX 501 Head ARE,HRC,LCIR Housing s

576668 STATOX 501 Head LCD Display



     STATOX 501 Stationary Gasdetector

562008 STATOX 501 Sensor Head Comb. ARE (s)

562007 STATOX 501 Sensor Head Comb. ARE (u)

562011 STATOX 501 Sensor Head Comb. ARE (u) salt water resistant

557122 STATOX 501 Sensor Head Comb. HRC

557128 STATOX 501 Sensor Head Comb. HRC salt water resistant

557157 STATOX 501 Sensor Head Comb. LCIR

557160 STATOX 501 Sensor Head Comb. LCIR salt water resistant

557181 STATOX 501 Sensor Head Comb. MCIR

557184 STATOX 501 Sensor Head Comb. MCIR salt water resistant

532426 STATOX 501 Sensor Head LCIR CO2 0-10%

532418 STATOX 501 Sensor Head LCIR CO2 0-100%

536134 STATOX 501 Sensor Head AsH3   0,5 ppm

571722 STATOX 501 Sensor Head Cl2   3 ppm

571727 STATOX 501 Sensor Head Cl2    5 ppm

558401 STATOX 501 Sensor Head ClO2   1 ppm

558112 STATOX 501 Sensor Head ClO2   5 ppm

570810 STATOX 501 Sensor Head CO   100ppm

570802 STATOX 501 Sensor Head CO     300 ppm

551042 STATOX 501 Sensor Head COCl2  0,3 ppm

551059 STATOX 501 Sensor Head COCl2  1,0 ppm

550500 STATOX 501 Sensor Head COCl2  1,0 ppm QE-Filter H2S

551232 STATOX 501 Sensor Head COCl2  100 ppm

551190 STATOX 501 Sensor Head COCl2  15 ppm

572063 STATOX 501 Sensor Head H2     150 ppm

571842 STATOX 501 Sensor Head H2     300 ppm

572048 STATOX 501 Sensor Head H2     1000 ppm

571701 STATOX 501 Sensor Head H2S    100 ppm

571000 STATOX 501 Sensor Head H2S 100 ppm Gel-Sensor

567824 STATOX 501 Sensor Head HCl    50 ppm

571730 STATOX 501  Sensor Head    HCN    20 ppm

559375 STATOX 501 Sensor Head HCN    30 ppm

571768 STATOX 501 Sensor Head HCN    100 ppm

571120 STATOX 501 Sensor Head HF   10 ppm

551497 STATOX 501 Sensor Head N2H4   1 ppm

544799 STATOX 501 Sensor Head NH3    150 ppm

570053 STATOX 501 Sensor Head NH3 TT 150 ppm

571800 STATOX 501 Sensor Head NO2    10 ppm

571784 STATOX 501 Sensor Head NO2    50 ppm

571867 STATOX 501 Sensor Head O2     2-35 %

571100 STATOX 501 Sensor Head O3  0-1 ppm

536126 STATOX 501 Sensor Head PH3    1 ppm

571826 STATOX 501 Sensor Head SO2    20 ppm

560134 STATOX 501 Sensor Head SO2    5 ppm

558104 STATOX 501 Sensor Head THT   50mg/cbm

561510 STATOX 501 Sensor Head Infratox 0-100 % LEL Ethylene

561990 STATOX 501 Sensor Head Infratox 0-100 % LEL Methane

561709 STATOX 501 Sensor Head Infratox 0-2 % CO2

561708 STATOX 501 Sensor Head Infratox 0-5 % CO2

511000 STATOX 501 Sensor Head PID ppm no Atex

511200 STATOX 501 Sensor Head PID ppb no Atex

511150 STATOX 501 Sensor Head PID ppm Atex

511155 STATOX 501 Sensor Head PID ppb Atex
