当前位置:首页 > 环境检测设备 > 气体检测 > 德国Compur Statox 505固定式有毒气体检测仪
产品介绍

产品名称:固定式有毒气体检测器/有毒气体检测仪/有毒气体探测器/固定式有毒气体检测仪

英文名称:Toxic Gas Detector Statox 505: SIL 2 compliant

品牌:德国Compur

型号:STATOX 505

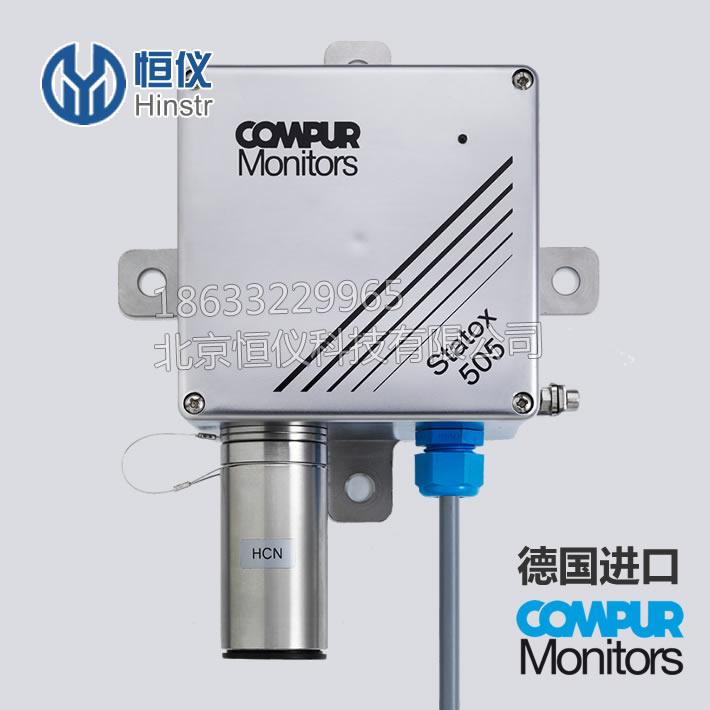

德国Compur Statox 505固定式有毒气体检测仪



德国Compur为国际知名气体分析检测产品厂家,在国际及中国拥有大量的用户,产品充分体现德国品质,拥有较好的质量,广受用户好评。



恒仪公司是德国Compur在中国重要的合作经销商,恒仪与Compur合作多年,为中国大量用户提供产品服务,如需订购COMPUR品牌产品,可以随时联系我们:



德国Compur Statox 505固定式有毒气体检测器符合SIL 2标准,可选检测气体传感器:AsH3、Cl 2、CuO2、CO、COCl 2、H2、H2S、HCl、HCN、HF、N2H4、NH3、NO2、O2、O3、PH3、SO2,所有气体传感器采用即插即用技术,方便快捷。

德国Compur Statox 505固定式有毒气体检测器符合DIN EN 61508 、DIN EN 50402标准。

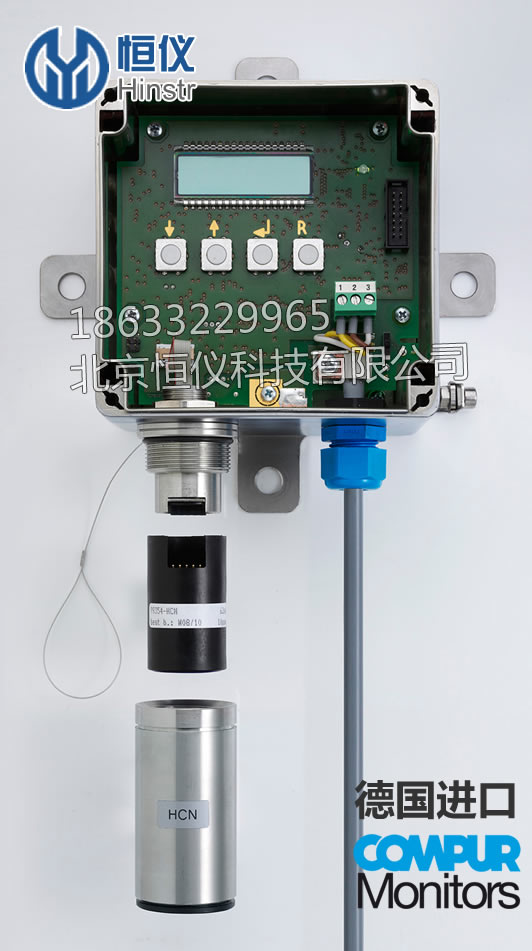

德国Compur Statox 505固定式有毒气体检测仪



德国Compur Statox 505固定式有毒气体检测仪器相关参数

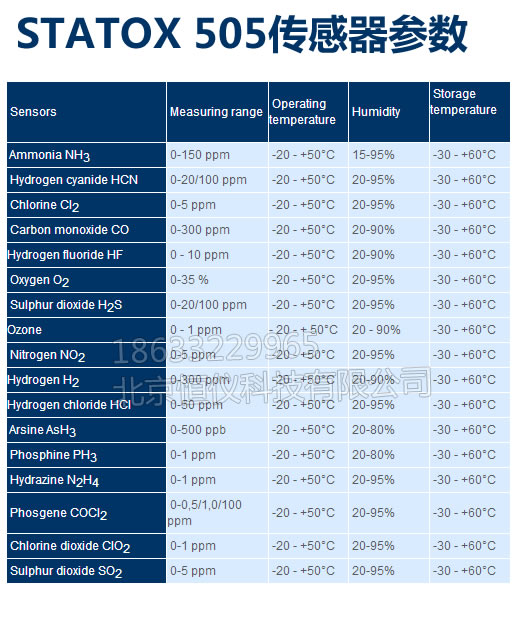

德国Compur Statox 505气体传感器参数

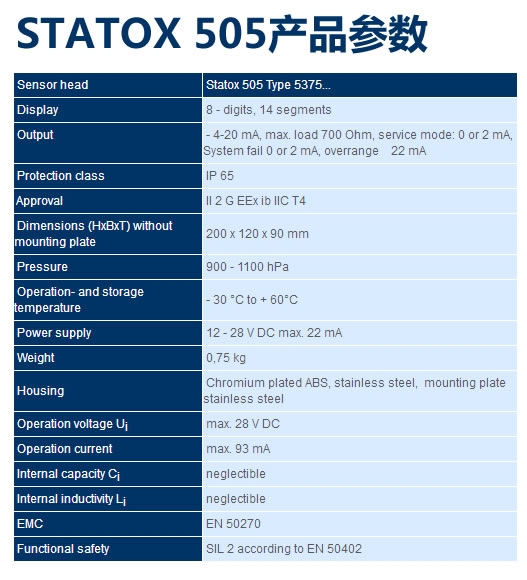

德国Compur Statox 505固定式有毒气体检测仪产品参数



英文介绍:

Toxic Gas Detector Statox 505: SIL 2 compliant



You always know what is going on in your plant: Gas detection system Statox 505 compliant to SIL 2 Standard

Intelligent Gas Sensors for AsH3, Cl2, ClO2, CO, COCl2, H2, H2S, HCl, HCN, HF, N2H4, NH3, NO2, O2, O3, PH3 and SO2

The Statox 505 new 4 – 20 mA Transmitter for toxic gases and oxygen features everything that a new gas detection instrument of the latest generation needs: State of the Art components (hardware and software), smart sensor technology, “heartbeat” sensor control and complete system diagnostics on board.

What makes the Statox 505 so reliable?

In process monitoring, the status of plant components in case of a failure is becoming more and more a critical issue. The standards DIN EN 61508 as well as the product standard DIN EN 50402 are powerful tools to calculate the probability of a failure on demand. The Statox 505 complies with all of the requirements of these standards. It obtained the safety integrity level SIL 2. This provides a reliable database for the user to calculate the safety standard of his plant. If the Statox 505 is operated as a SIL 2 component, a so called “proof test” in certain time intervals is mandatory.

All OK

All important parameters such as sensor „heartbeat“, signal output, calibration, zero, sensitivity, temperature, sensor memory, amplifier, CPU, power supply etc. are continuously monitored for proper function. In case of a failure, an alarm will be triggered. Thus the system cannot fail without the error being noticed. A green LED signalizes the system status. The display and the controls are located at the inside of the housing - well protected from the elements.

Minimum time and work in the field

The sensors of the Statox 505 are plug and play technology. Each sensor has a F-RAM on board which communicates all relevant parameters to the sensor head: Gas, measuring range, last calibration, ex works calibration, response time etc.

The sensors can easily be calibrated in the shop. For the user this means that he never ever will have to do calibration work in the harsh elements (wind, rain, cold, heat). No more lugging heavy test equipment and gas cylinders into the field. All the user has to do in the field, is plug the sensor back in. To do that, you don`t even need a tool! While the sensor is getting calibrated in the shop, the sensor cartridge stays in place and protects the sensor head from dust and rain.

Trouble- free wall - or pipe mounting

The Statox 505 comes with a mounting plate for either wall - or pipe mounting. No need to open the sensor head for plant installationToxic Gas Detector Statox 505: SIL 2 compliant



You always know what is going on in your plant: Gas detection system Statox 505 compliant to SIL 2 Standard

Intelligent Gas Sensors for AsH3, Cl2, ClO2, CO, COCl2, H2, H2S, HCl, HCN, HF, N2H4, NH3, NO2, O2, O3, PH3 and SO2

The Statox 505 new 4 – 20 mA Transmitter for toxic gases and oxygen features everything that a new gas detection instrument of the latest generation needs: State of the Art components (hardware and software), smart sensor technology, “heartbeat” sensor control and complete system diagnostics on board.

What makes the Statox 505 so reliable?

In process monitoring, the status of plant components in case of a failure is becoming more and more a critical issue. The standards DIN EN 61508 as well as the product standard DIN EN 50402 are powerful tools to calculate the probability of a failure on demand. The Statox 505 complies with all of the requirements of these standards. It obtained the safety integrity level SIL 2. This provides a reliable database for the user to calculate the safety standard of his plant. If the Statox 505 is operated as a SIL 2 component, a so called “proof test” in certain time intervals is mandatory.

All OK

All important parameters such as sensor „heartbeat“, signal output, calibration, zero, sensitivity, temperature, sensor memory, amplifier, CPU, power supply etc. are continuously monitored for proper function. In case of a failure, an alarm will be triggered. Thus the system cannot fail without the error being noticed. A green LED signalizes the system status. The display and the controls are located at the inside of the housing - well protected from the elements.

Minimum time and work in the field

The sensors of the Statox 505 are plug and play technology. Each sensor has a F-RAM on board which communicates all relevant parameters to the sensor head: Gas, measuring range, last calibration, ex works calibration, response time etc.

The sensors can easily be calibrated in the shop. For the user this means that he never ever will have to do calibration work in the harsh elements (wind, rain, cold, heat). No more lugging heavy test equipment and gas cylinders into the field. All the user has to do in the field, is plug the sensor back in. To do that, you don`t even need a tool! While the sensor is getting calibrated in the shop, the sensor cartridge stays in place and protects the sensor head from dust and rain.

Trouble- free wall - or pipe mounting

The Statox 505 comes with a mounting plate for either wall - or pipe mounting. No need to open the sensor head for plant installation



代理销售的德国Compur产品

订货号 产品

MONITOX PLUS Gasdetector

503571 MONITOX PLUS Gasdetector ASH3   0,5 ppm

503456 MONITOX PLUS Gasdetector Cl2      5 ppm

555803 MONITOX PLUS Gasdetector ClO2     1 ppm

503423 MONITOX PLUS Gasdetector CO     500 ppm

503191 MONITOX PLUS Gasdetector COCl2    1 ppm

500999 MONITOX PLUS Gasdetector H2S    100 ppm

501002 MONITOX PLUS Gasdetector H2S   20 ppm

503530 MONITOX PLUS Gasdetector HCl     50 ppm

503217 MONITOX PLUS Gasdetector HCN    100 ppm

503220 MONITOX PLUS Gasdetector HCN    20 ppm

555811 MONITOX PLUS Gasdetector N2H4     1 ppm

503407 MONITOX PLUS Gasdetector NO2     10 ppm

503357 MONITOX PLUS Gasdetector NO2     50 ppm

503514 MONITOX PLUS Gasdetector O2      2 - 35 %

503629 MONITOX PLUS Gasdetector O3  1 ppm

503613 MONITOX PLUS Gasdetector PH3     1 ppm

566586 MONITOX PLUS Gasdetector SO2     10 ppm

560142 MONITOX PLUS Gasdetector SO2   5 ppm

MONITOX PLUS Sensors

501344 MONITOX PLUS Sensor ASH3  0,5 ppm

536209 MONITOX PLUS Sensor Cl2     5 ppm

554855 MONITOX PLUS Sensor ClO2    1 ppm

536183 MONITOX PLUS Sensor CO    500 ppm

536159 MONITOX PLUS Sensor COCl2   1 ppm

535953 MONITOX PLUS Sensor H2S   100 ppm

535959 MONITOX PLUS Sensor H2S     20 ppm

536241 MONITOX PLUS Sensor HCl    50 ppm

536167 MONITOX PLUS Sensor HCN   100 ppm

579031 MONITOX PLUS Sensor HCN 20 ppm

555829 MONITOX PLUS Sensor N2H4          1 ppm

569523 MONITOX PLUS Sensor NO2    10 ppm

536175 MONITOX PLUS Sensor NO2    50 ppm

570380 MONITOX PLUS Sensor O2   2-35%

570395 MONITOX PLUS Sensor O3  1 ppm

536274 MONITOX PLUS Sensor PH3     1 ppm

554863 MONITOX PLUS Sensor SO2   5/10 ppm

555800 MONITOX PLUS Sensor NH3 200ppm OEM Airsense

MONITOX PLUS Batteries

505436 MONITOX PLUS Battery Set (2 x CR 2477)

505402 MONITOX PLUS Batt-Pack for CR 2477

MONITOX PLUS Accessories & Parts

569559 MONITOX PLUS Filtercap Cl2

554871 MONITOX PLUS Filtercap ClO2

569542 MONITOX PLUS Filtercap CO

569518 MONITOX PLUS Filtercap COCl2

569526 MONITOX PLUS Filtercap HCN

555837 MONITOX PLUS Filtercap N2H4

570414 MONITOX PLUS Filtercap O2

570420 MONITOX PLUS Filtercap O3

570877 MONITOX PLUS Filtercap PH3

554889 MONITOX PLUS Filtercap SO2

569747 MONITOX PLUS Calgas adapter

503746 MONITOX PLUS Leather pouch

883197 MONITOX PLUS Buzzer

502540 MONITOX PLUS Clip Standard

500196 MONITOX PLUS Housing silver

543106 MONITOX PLUS Keyboard Pin

574952 MONITOX PLUS LCD-Display

574960 MONITOX PLUS LCD-PCB

804904 MONITOX PLUS Neck Chain

500437 MONITOX PLUS PCB

MONITOX/S/SD/MO+/ -00- Sensoren

515724 MONITOX*SD Sensor Cl2     5 ppm

515690 MONITOX*SD Sensor CO    300 ppm

515930 MONITOX*SD Sensor H2S   100 ppm

515955 MONITOX*SD Sensor HCN   100 ppm

515740 MONITOX*SD Sensor O2     2-35  %

515963 MONITOX*   Sensor H2S   100 ppm

515989 MONITOX*   Sensor HCN   100 ppm

515948 MONITOX*SD Sensor COCl2   1 ppm

MONITOX/S/SD Batteries

507457 MONITOX*Battery set (2 ea 3V CR 1/3 N)

507465 MONITOX*S/SD Batteryset (4 ea 3V CR 1632)

GAS GENERATOR

510204 GAS GENERATOR 5380 Cl2

510790 GAS GENERATOR 5380 CO

510634 GAS GENERATOR 5380 COCl2

510741 GAS GENERATOR 5380 NO2

510336 GAS GENERATOR 5380 O3

510279 GAS GENERATOR 5380 SO2

510329 GAS GENERATOR 5380 H2S

510717 GAS GENERATOR 5380 HCN 100 ppm

510640 GAS GENERATOR 5380 HCN  20 ppm

GAS GENERATOR Cells

516740 GAS GENERATOR 5380 cell O3

516730 GAS GENERATOR 5390/5380 cell HCN 100 ppm

516850 GAS GENERATOR 5390/5380 cell HCN 20 ppm

516755 GAS GENERATOR 5390/5380 cell  Cl2

516938 GAS GENERATOR 5390/5380 cell  CO

516847 GAS GENERATOR 5390/5380 cell  COCl2

516722 GAS GENERATOR 5390/5380 cell  H2S

516912 GAS GENERATOR 5390/5380 cell  NO2

516763 GAS GENERATOR 5390/5380 cell  SO2

GAS GENERATOR Parts

879716 GAS GENERATOR Battery 1,5 V SIZE -C-

517290 GAS GENERATOR Battery 9V

534695 GAS GENERATOR  Plug

510643 GAS GENERATOR 5380 Pump

550796 GAS GENERATOR 5390 H2S/HCN Pump

517506 GAS GENERATOR 5390 Moisture Cap

CURRENT SOURCE

501799 CURRENT SOURCE 0-2 MA

TRACER Leakdetector

500642 TRACER Cl2 high range ATEX

500607 TRACER Cl2 low range ATEX

500606 TRACER ClO2 low range ATEX

500658 TRACER COCl2 high range ATEX

500602 TRACER COCl2 low range ATEX

500665 TRACER H2S high range ATEX

500603 TRACER H2S low range ATEX

500654 TRACER HCl high range ATEX

500651 TRACER HCl low range ATEX

500594 TRACER HCN high range ATEX

500604 TRACER HCN low range ATEX

500599 TRACER NO2 high range ATEX

500605 TRACER NO2 low range ATEX

500869 TRACER Cl2 high range Battery no ATEX

500876 TRACER CL2 low range Battery no ATEX

500875 TRACER ClO2 low range Battery no ATEX

500865 TRACER COCl2 high range Battery no ATEX

500871 TRACER COCl2 low range Battery no ATEX

500866 TRACER H2S high range Battery no ATEX

500872 TRACER H2S low range Battery no ATEX

500870 TRACER HCl high range Battery no ATEX

500877 TRACER HCl low range Battery no ATEX

500867 TRACER HCN high range Battery no ATEX

500873 TRACER HCN low range Battery no ATEX

500868 TRACER NO2 high range Battery no ATEX

500874 TRACER NO2 low range Battery no ATEX

TRACER Sensors

500641 TRACER Sensor Cl2 high range

500611 TRACER Sensor Cl2 low range

500616 TRACER Sensor ClO2 low range

500659 TRACER Sensor COCl2 high range

500612 TRACER Sensor COCl2 low range

500666 TRACER Sensor H2S high range

500614 TRACER Sensor H2S low range

500655 TRACER Sensor HCl high range

500662 TRACER Sensor HCl low range

500597 TRACER Sensor HCN high range

500613 TRACER Sensor HCN low range

500598 TRACER Sensor NO2 high range

500615 TRACER Sensor NO2 low range

TRACER Accessories & Parts

500854 TRACER modification Disposable Battery

500670 TRACER Inline Filter

500631 TRACER Probe

500633 TRACER Probe filter (5ea)

STATOX 4120 Sensor & Generatorcells

517084 STATOX Generator Cell Cl2

507770 STATOX Generator Cell ClO2

500222 STATOX Generator cell COCl2 0,1 ppm

532570 STATOX Generator Cell COCl2 0,3/0,5/1,5/15/100 ppm

516961 STATOX Generator Cell H2S/HCN/CO/HCl

538791 STATOX Sensor Cl2        10 ppm

516201 STATOX Sensor Cl2     1,5/3 ppm

507630 STATOX Sensor ClO2      0,5 ppm

516128 STATOX Sensor CO        150 ppm

533719 STATOX Sensor COCl2      15 ppm

531200 STATOX Sensor COCl2     1,5 ppm

551687 STATOX Sensor COCl2     100 ppm

560845 STATOX Sensor COCl2     0,1 ppm

516060 STATOX Sensor COCl2 0,3/0,5 ppm

537403 STATOX Sensor COCl2 0,3/0,5 ppm incl. Cl2 CS-Filter

516003 STATOX Sensor H2S 30/50/100 ppm

558849 STATOX Sensor HCl       100 ppm

558833 STATOX Sensor HCl       30 ppm

562106 STATOX Sensor HCN        15 ppm

504918 STATOX Sensor HCN       100 ppm

516086 STATOX Sensor HCN     30/50 ppm

516144 STATOX Sensor HCN   HT  30/50 ppm

STATOX 4120 Filter

517167 STATOX Head 0-Gas Filter Cartridge

551885 STATOX Head Dust filter Cl2, COCl2 100 ppm

516623 STATOX Head Dust filter H2S/HCN

557817 STATOX Head HCN/CO/COCl2 CS-Filt. H2S

559601 STATOX Head HCN/COCl2 QS-Filter HCl,Cl2

STATOX 4120 Accessories & Parts

508950 STATOX Diagnostic Unit Battery

518330 STATOX Head Battery

500224 STATOX Head Calgasadapter plug

506947 STATOX Head Gasket 236 mm

577849 STATOX Head PCB

500225 STATOX Head plug adapter

532828 STATOX Head Pump

500223 STATOX Head Splashguard plug

551703 STATOX Maintenance Request (req.EPROM 03)

STATOX 501 Stationary Gasdetector

562008 STATOX 501 Sensor Head Comb. ARE (s)

562007 STATOX 501 Sensor Head Comb. ARE (u)

562011 STATOX 501 Sensor Head Comb. ARE (u) salt water resistant

557122 STATOX 501 Sensor Head Comb. HRC

557128 STATOX 501 Sensor Head Comb. HRC salt water resistant

557157 STATOX 501 Sensor Head Comb. LCIR

557160 STATOX 501 Sensor Head Comb. LCIR salt water resistant

557181 STATOX 501 Sensor Head Comb. MCIR

557184 STATOX 501 Sensor Head Comb. MCIR salt water resistant

532426 STATOX 501 Sensor Head LCIR CO2 0-10%

532418 STATOX 501 Sensor Head LCIR CO2 0-100%

536134 STATOX 501 Sensor Head AsH3   0,5 ppm

571722 STATOX 501 Sensor Head Cl2   3 ppm

571727 STATOX 501 Sensor Head Cl2    5 ppm

558401 STATOX 501 Sensor Head ClO2   1 ppm

558112 STATOX 501 Sensor Head ClO2   5 ppm

570810 STATOX 501 Sensor Head CO   100ppm

570802 STATOX 501 Sensor Head CO     300 ppm

551042 STATOX 501 Sensor Head COCl2  0,3 ppm

551059 STATOX 501 Sensor Head COCl2  1,0 ppm

550500 STATOX 501 Sensor Head COCl2  1,0 ppm QE-Filter H2S

551232 STATOX 501 Sensor Head COCl2  100 ppm

551190 STATOX 501 Sensor Head COCl2  15 ppm

572063 STATOX 501 Sensor Head H2     150 ppm

571842 STATOX 501 Sensor Head H2     300 ppm

572048 STATOX 501 Sensor Head H2     1000 ppm

571701 STATOX 501 Sensor Head H2S    100 ppm

571000 STATOX 501 Sensor Head H2S 100 ppm Gel-Sensor

567824 STATOX 501 Sensor Head HCl    50 ppm

571730 STATOX 501  Sensor Head    HCN    20 ppm

559375 STATOX 501 Sensor Head HCN    30 ppm

571768 STATOX 501 Sensor Head HCN    100 ppm

571120 STATOX 501 Sensor Head HF   10 ppm

551497 STATOX 501 Sensor Head N2H4   1 ppm

544799 STATOX 501 Sensor Head NH3    150 ppm

570053 STATOX 501 Sensor Head NH3 TT 150 ppm

571800 STATOX 501 Sensor Head NO2    10 ppm

571784 STATOX 501 Sensor Head NO2    50 ppm

571867 STATOX 501 Sensor Head O2     2-35 %

571100 STATOX 501 Sensor Head O3  0-1 ppm

536126 STATOX 501 Sensor Head PH3    1 ppm

571826 STATOX 501 Sensor Head SO2    20 ppm

560134 STATOX 501 Sensor Head SO2    5 ppm

558104 STATOX 501 Sensor Head THT   50mg/cbm

561510 STATOX 501 Sensor Head Infratox 0-100 % LEL Ethylene

561990 STATOX 501 Sensor Head Infratox 0-100 % LEL Methane

561709 STATOX 501 Sensor Head Infratox 0-2 % CO2

561708 STATOX 501 Sensor Head Infratox 0-5 % CO2

511000 STATOX 501 Sensor Head PID ppm no Atex

511200 STATOX 501 Sensor Head PID ppb no Atex

511150 STATOX 501 Sensor Head PID ppm Atex

511155 STATOX 501 Sensor Head PID ppb Atex

STATOX 501 Sensors

536100 STATOX 501 Sensor AsH3     0,5 ppm

538718 STATOX 501 Sensor Cl2         3/5 ppm

558278 STATOX 501 Sensor ClO2       1 ppm

558286 STATOX 501 Sensor ClO2       5 ppm

571151 STATOX 501 Sensor CO     100/300 ppm

550697 STATOX 501 Sensor COCl2    0,3 ppm

550630 STATOX 501 Sensor COCl2    1,0 ppm

550501 STATOX 501 Sensor COCl2  1,0 ppm QE-Filter H2S

550606 STATOX 501 Sensor COCl2    100 ppm

550614 STATOX 501 Sensor COCl2     15 ppm

531250 STATOX 501 Sensor CO2  0-100% LCIR

531500 STATOX 501 Sensor CO2  0-10% LCIR

561956 STATOX 501 Sensor Combustible ARE

556280 STATOX 501 Sensor Combustible HRC

557110 STATOX 501 Sensor Combustible LCIR CH4

557308 STATOX 501 Sensor Combustible MCIR

556876 STATOX 501 Sensor Combustible LRC

511214 STATOX 501 Sensor Combustible PID ppm

511215 STATOX 501 Sensor Combustible PID ppb

544971 STATOX 501 Sensor H2   150/300/1000 ppm

531002 STATOX 501 Sensor H2S      100 ppm

516188 STATOX 501 Sensor H2S 100 ppm Gel

516190 STATOX 501 Sensor H2S  0,3 ppm

536118 STATOX 501 Sensor HCl       50 ppm

538360 STATOX 501 Sensor HCN       20 ppm

538908 STATOX 501 Sensor HCN   30/100 ppm

572135 STATOX 501 Sensor HF        10 ppm

561518 STATOX 501 Sensor Infratox  0-100 % LEL Ethylen

561053 STATOX 501 Sensor Infratox  0-100 % LEL Methane

561006 STATOX 501 Sensor Infratox 0-2/5 % CO2

501062 STATOX 501 Sensor N2H4       1 ppm

544872 STATOX 501 Sensor NH3      150 ppm

570050 STATOX 501 Sensor NH3 TT   150 ppm

569143 STATOX 501 Sensor NO2       10 ppm

534485 STATOX 501 Sensor NO2       50 ppm

530814 STATOX 501 Sensor O2          2-35 %

571103 STATOX 501 Sensor O3       0-1 ppm

536095 STATOX 501 Sensor PH3        1 ppm

538429 STATOX 501 Sensor SO2     5/20 ppm

558952 STATOX 501 Sensor THT     50mg/cbm



561030 STATOX 501 Sensor Infratox cal Butane

561026 STATOX 501 Sensor Infratox cal c-Pentane

561032 STATOX 501 Sensor Infratox cal Hexane

561067 STATOX 501 Sensor Infratox cal i-Butene

561038 STATOX 501 Sensor Infratox cal i-Propanol

561040 STATOX 501 Sensor Infratox cal Chlorbenzol

561037 STATOX 501 Sensor Infratox cal Methanol

561031 STATOX 501 Sensor Infratox cal n-Pentane

561029 STATOX 501 Sensor Infratox cal Propane

561034 STATOX 501 Sensor Infratox cal Propene

561695 STATOX 501 Sensor Infratox cal Nonane

561696 STATOX 501 Sensor Infratox cal Acetone

561697 STATOX 501 Sensor Infratox cal Butylacetate

561698 STATOX 501 Sensor Infratox cal MM

561699 STATOX 501 Sensor Infratox cal MDM

561700 STATOX 501 Sensor Infratox cal Hexane 1000 ppm

559584 STATOX 501 Sensor ARE ref n-Butane/Methanol

559588 STATOX 501 Sensor ARE ref n-Butan/Dimethylether

559595 STATOX 501 Sensor ARE ref n-Butane/Xylene

559596 STATOX 501 Sensor ARE ref n-Butan/Ethanol

559300 STATOX 501 Sensor ARE ref n-Butane/Nonane

559301 STATOX 501 Sensor ARE ref n-Butane/Propene

559302 STATOX 501 Sensor ARE ref n-Butane/Acetone

559303 STATOX 501 Sensor ARE ref n-Butan /Hexane

559304 STATOX 501 Sensor ARE ref n-Butane/Acetylene

559305 STATOX 501 Sensor ARE ref Propane/Benzene

559306 STATOX 501 Sensor ARE ref n-Butane/NH3

559307 STATOX 501 Sensor ARE ref Propane/NH3

559308 STATOX 501 Sensor ARE ref n-Butane/H2

559309 STATOX 501 Sensor ARE ref n-Butane/Propane

559310 STATOX 501 Sensor ARE ref n-Butane/c-Pentane

560175 STATOX 501 Sensor ARE ref n-Butane/Toluene

STATOX 501 Accessories & Parts

804385 STATOX 501 Flow Applications filter 5 Mikron

559607 STATOX 501 Dust/Aerosol filt. HRC/CO/H2

559599 STATOX 501 H2/CO/ClO2/COCl2 CS-Filter H2S

559600 STATOX 501 HCN/COCl2   QS-Filter HCl, Cl2

500791 STATOX 501 Charcoalfilter 20  ea

557835 STATOX 501 CO QS-Filter HC

534620 STATOX 501 Head Adapter Gasgenerator

501047 STATOX 501 Head HRC Cal/Diff.adapter

562135 STATOX 501 Head HRC Pipe adapter

551061 STATOX 501 Head HRC Cal/Diff.adapter windshielded

569804 STATOX 501 Head HRC Cal/Flow adapter

561051 STATOX 501 Head Infratox Cable glands

562031 STATOX 501 Head Infratox Calibration adapter

561059 STATOX 501 Head Infratox Calibration adapter hose connector

511101 STATOX 501 Head PID Calibration adapter

511201 STATOX 501 Head PID Interface Atex

511205 STATOX 501 Head PID Sensor blind plug

511206 STATOX 501 Head PID Filterset  (10 ea)

561055 STATOX 501 Sensor Head Infratox Sensor Splashguard

561048 STATOX 501 Sensor Head Heat Shield

561046 STATOX 501 Sensor Head Heat Shield Pipe kit

561047 STATOX 501 Sensor Head Infratox Heat Shield

561049 STATOX 501 Sensor Head Infratox Heat Shield Conduit

557833 STATOX 501 Sensor Splashguard

511218 STATOX 501 Sensor PID replacement lamp

511223 STATOX 501 Sensor PID replacement electrodes ppm

511224 STATOX 501 Sensor PID replacement electrodes ppb

511207 STATOX 501 Sensor PID Polishing set

560670 STATOX 501 Controller PCB Connector

560654 STATOX 501 Controller PCB Display

560662 STATOX 501 Controller PCB Processor

560688 STATOX 501 Controller PCB Supply

543171 STATOX 501 Head Tox Housing

557175 STATOX 501 Head ARE,HRC,LCIR Housing saltwater resistent

557141 STATOX 501 Head ARE,HRC,LCIR Housing u

557145 STATOX 501 Head ARE,HRC,LCIR Housing s

576668 STATOX 501 Head LCD Display

STATOX-E/S cells

538858 STATOX-S Sensor CO 2El.      300 ppm

550648 STATOX-S Sensor Combustible

Statox 502

557000 STATOX 502 Control Module

557002 STATOX 502 Busadapter Set for 1 module

557003 STATOX 502 Connection Set for Busadapter

557010 STATOX 502 Cabinet 400x300x150 mm LxWxD

557040 STATOX 502 Cabinet 600x400x200 mm LxWxD

557042 STATOX 502 Option Ext selftest STATOX 560 (557040)

557044 STATOX 502 19"  Carrier 4HU

557046 STATOX 502 Option Ext selftest STATOX 560 (557044)



803328 STATOX 501 Power supply 30W

803336 STATOX 501 Power supply 50W

803345 STATOX 560 Power supply 95 W

STATOX 505 Stationary Gasdetector (SIL2)

570500 STATOX 505 Sensor Head w/o Sensor

570600 STATOX 505 Sensor Head w window  w/o Sensor

STATOX 505 Sensors

530507 STATOX 505 Sensor Cl2 5 ppm

530537 STATOX 505 Sensor Cl2   10 ppm

530520 STATOX 505 Sensor Cl2  100 ppm

530505 STATOX 505 Sensor CO  300 ppm

530695 STATOX 505 Sensor COCl2  0,5 ppm

530694 STATOX 505 Sensor COCl2 0,5 ppm incl. CS Filter

530702 STATOX 505 Sensor COCl2  1,0 ppm

530688 STATOX 505 Sensor COCl2  20 ppm

530502 STATOX 505 Sensor COCl2  100 ppm

530682 STATOX 505 Sensor COCl2  15 ppm

530677 STATOX 505 Sensor H2  300 ppm

530765 STATOX 505 Sensor H2  1000 ppm

530501 STATOX 505 Sensor H2S Gel  100 ppm

530571 STATOX 505 Sensor H2S Gel  20 ppm

530511 STATOX 505 Sensor HCl  50 ppm

530522 STATOX 505 Sensor HCl   100 ppm

530503 STATOX 505 Sensor HCN  100 ppm

530673 STATOX 505 Sensor HCN  20 ppm

530504 STATOX 505 Sensor NO2  5 ppm

530564 STATOX 505 Sensor NO2  10 ppm

530515 STATOX 505 Sensor NO2         15 ppm

530509 STATOX 505 Sensor O2  35 Vol%

530508 STATOX 505 Sensor SO2   5 ppm

530617 STATOX 505 Sensor NH3 TT   150 ppm

530619 STATOX 505 Sensor AsH3  0,5 ppm

530523 STATOX 505 Sensor ClO2   1 ppm

530723 STATOX 505 Sensor ClO2   5 ppm

530506 STATOX 505 Sensor N2H4   1 ppm

530720 STATOX 505 Sensor PH3   1 ppm

530625 STATOX 505 Sensor O3   1 ppm

530615 STATOX 505 Sensor HF   10 ppm

STATOX 505 Accessories & Parts

570580 STATOX 505 CS-Filter H2S

570505 STATOX 505 Calibration adapter

570547 STATOX 505 Calibration/Diffusion adapter

570560 STATOX 505 Splashguard

570565 STATOX 505 Pipe kit 1,5 inch

570578 STATOX 505 Pipe Kit 1,0 inch

570589 STATOX 505 Pipe Kit 2,0 inch

803360 STATOX 505 Repeater 2/3 wire Source

570591 STATOX 505 Sensor Head PCB

570598 STATOX 505 Sensor Head O-Ring Set

570510 STATOX 505 Sensor Head Filter holder

Statox 560 Gasdetector

562900 STATOX 560 Basemodule w cable 10 core 1 m

562902 STATOX 560 Basemodule w plug 6+1

562910 STATOX 560 Sensormodule Cl2 5 ppm

562912 STATOX 560 Sensormodule Cl2 10 ppm

562916 STATOX 560 Sensormodule CO 300 ppm

562950 STATOX 560 Sensormodule COCL2 0,5 ppm

562952 STATOX 560 Sensormodule COCl2 1 ppm

562954 STATOX 560 Sensormodule COCl2 50 ppm

562958 STATOX 560 Sensormodule H2S 100 ppm

562930 STATOX 560 Sensormodule HCN 20 ppm

562932 STATOX 560 Sensormodule HCN 50 ppm

562934 STATOX 560 Sensormodule HCN 100 ppm

Statox 560 Sensors

562940 STATOX 560 Sensor Cl2 5 ppm

562942 STATOX 560 Sensor Cl2 5 ppm

562946 STATOX 560 Sensor CO 300 ppm

562950 STATOX 560 Sensor COCl2 0,5 ppm

562954 STATOX 560 Sensor COCl2 1 ppm

562956 STATOX 560 Sensor COCl2 50 ppm

562960 STATOX 560 Sensor H2S 100 ppm

562964 STATOX 560 Sensor HCN 20 ppm

562966 STATOX 560 Sensor HCN 50 ppm

562968 STATOX 560 Sensor HCN 100 ppm

562970 STATOX 560 Generator Cl2 5/10 ppm

562972 STATOX 560 Generator CO 300 ppm

562974 STATOX 560 Generator COCl2 0,5/1/50 ppm

562976 STATOX 560 Generator HS2 100 ppm

562978 STATOX 560 Generator HCN 20/50/100 ppm

STATOX 560 Parts

562988 Statox 560 Junction box

562982 STATOX 560 Pump

562984 STATOX 560 Cal-Adapter

805594 STATOX 560 coupling 6+1 wire

Dosimeter Badge

572511 BADGE Medic COCl2, 250 ea

599389 BADGE Holder 200 ea

572115 BADGE COCl2 Diffusion Paper 200ea

572121 BADGE COCl2 Indicator Paper 100ea

598860 BADGE COCl2 Indicator Set  1000ea

Calibration Gas

556710 Calgas Gastubing 1670 (60cm)

522432 Calgas 12l C4H10  0,3 %       in air

556637 Calgas 58/34l Valve 715 =300ml/min

560506 Calgas 12l Valve with Flowindicator

591072 Calgas 34l CH4 2,2%+CO 100ppm+H2S 40ppm+O2 15%

591073 Calgas 34l CH4 2,5%+CO2 2%+H2S 40 ppm+O2 15%

591075 Calgas 34l CH4 2.2%+CO2 2%+H2S 40ppm+CO 100ppm+O2 15% in N2

591077 Kalgas 58l CH4 2.2%,CO2 0.5%,H2S 25ppm,CO 100ppm,O2 18% i.N2

556629 Calgas 58l C4H10 0,75%       in air

556603 Calgas 58l CH4   2,20%       in air

556488 Calgas 58l CO 70 ppm in air

556505 Calgas 58l CO2 2%, O2 15% in N2

562296 Calgas 58l H2 2,00% in air

556440 Calgas 58l H2S 25 ppm in air

556441 Calgas 58l H2S 50 ppm       in air

556508 Calgas 58l Isobutylene 10 ppm in air

569406 Calgas 58l Isobutylene 100 ppm in air

556447 Calgas 58l H2S    10 ppm       in N2

556504 Calgas 58l SO2    5 ppm        in N2

562295 Calgas 58l synthetic air

556512 Calgas 58l Cl2    2 ppm        in N2

556520 Calgas 58l Cl2   10 ppm        in N2

556595 Calgas 58l HCl   10 ppm        in N2

556587 Calgas 58l HCN   10 ppm        in N2

556561 Calgas 58l NH3   25 ppm        in N2

556546 Calgas 58l NO2    5 ppm   in N2

556686 Calgas 58/34l Valve DFR 2001 variable Flow

950238 Calgas 34l CH4 2,2%+CO2 0,5%+H2S 25ppm+CO 100ppm+O2 18% i.N2

Service

914521 TKD Calgas Fee

914500 TKD Calibration- /Testcertificate D/E

914501 TKD Calibration- /Testcertificate D/F

914136 TKD Linecalibration Statox 501 HRC, ARE, LRC

914620 TKD Maintenance Fee GENERATOR

914612 TKD Maintenance Fee MONITOX

914653 TKD Maintenance Fee STATOX 4120

914661 TKD Maintenance Fee STATOX E/S/501/505

914711 TKD Maintenance Fee STATOX 560

914671 TKD Maintenance Fee Tracer

918662 TKD Repair Estimate MONITOX/Generator

918647 TKD Repair Estimate STATOX 4120

918639 TKD Repair Estimate STATOX-S/501/505

918678 TKD Repair Estimate STATOX 560

918664 TKD Repair Estimate Tracer

900215 TKD Repair Unit (1 unit = 6 min)

914117 TKD Travel Expense flat rate 100 km

914125 TKD Travel Expense flat rate 200 km

914133 TKD Travel Expense flat rate 300 km

900231 TKD Travel Expense per Kilometer
